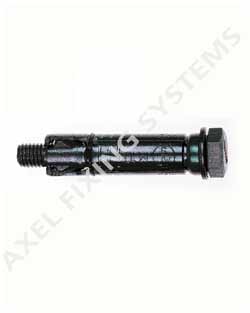

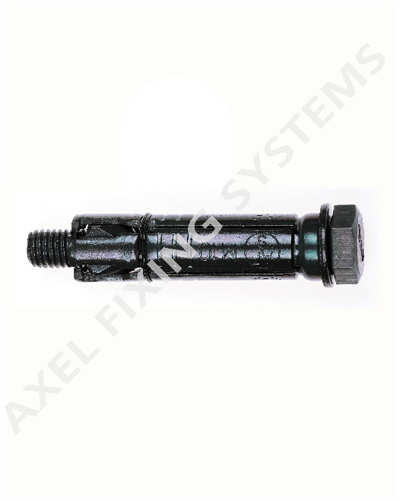

Quad Bolt Anchor

The Axel Quad Bolt anchor is well known in the market of expanding shield anchor. It is easy to use with good load carrying capacity. Quad Bolt anchor is made from pressed steel segments to make sure consistent dimensional accuracy. The cone nut acts evenly on each segment for maximum expansion in all substrates.
We are having a large range of Size øM6 to øM16 for the Quad Bolt Anchor.
The Quad Bolt anchor can be used in:-
Concrete,
Natural stone,
Solid block
Solid brick

Material :- Carbon Steel & Stainless Steel

Finish :- Zinc Plated(Carbon Steel).

Application :-

* Pipes
* Substructures
* Steel works
* Roller shutter doors
* Machinery
* Security grills
* Heavy Plants

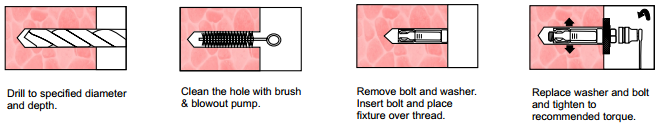

Installation
